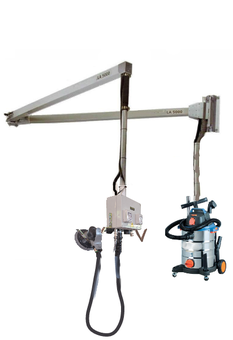

BA3 EN ARM WITH SEMI-AUTOMATIC 30Lt VACUUM CLEANER

Applications

The BA3 EN model is designed for environments requiring an efficient and compact extraction system, such as carpentry, body shops and workshops. The integrated vacuum cleaner simplifies and automates installation.

Technical features

• Integrated high-efficiency vacuum cleaner

• Articulated arm with Ø 50 mm piping

• Wall or bench mounting

• Robust painted steel structure

• Italian craftsmanship

Why choose the BA3 EN?

✔️ Autonomous and ready to use ✔️ Silent and powerful ✔️ Made in Italy ✔️ Fast shipping and dedicated assistance

FAQ

1. Is a centralized system required? No, the BA3 EN has an integrated vacuum cleaner and operates autonomously.

2. Is it suitable for continuous use? Yes, it is designed for intensive professional use.

BA1 Arm and A130L Vacuum Cleaner Model

Suction arm

Ideal for bodywork and carpentry. Compatible with any vacuum cleaner, it has a central joint with rack. Its fixing to the profile is equipped with a pin system and brass bushings, ensuring a fluid and manageable movement. Solid and resistant.

Service unit composed of:

• 2 Tool holder hooks

• 2 Suction nozzles

• 2 220V electrical sockets

• 2 Pneumatic inserts

• Length: 4.6 m

• Weight: 56 kg

TECHNICAL FEATURES

• Length: 4.6 m

• Electrical connection: 230V/15A

• Weight: 45 kg

USE

The BA light arm has been designed for any type of vacuum cleaner. Its function is to channel harmful dust towards the vacuum cleaner's collection bag. The arm is supplied with a central joint for easy movement with a 180 degree rotation. The use of the arm allows you to work safely in an orderly environment without cables on the floor.

SAFETY

Do not exceed the weight of 20 kg on the tool holder hooks located at the rear of the service unit. The 5 m arm is supplied tested according to ISO standards, with insulation and grounding. The arm is supplied exclusively as an extension for vacuum cleaners, therefore, any inappropriate use is the sole responsibility of the end user.

CONTROL UNIT (SERVICE NOZZLE)

The service nozzle is supplied with 2 220V sockets, two tool holder hooks, 2 pneumatic air sockets and 2 suction nozzles.

COMPRESSED AIR CONNECTION

• 4-8 bars of service pressure

• Minimum flow rate: 400 L/min for each tool connector

TURBINE CONNECTION (OR VACUUM CLEANER IF NOT PRESENT)

Connect the turbine/vacuum cleaner to the existing network according to the specifications indicated in the instruction manual. Check that the turbine/vacuum cleaner is automatic, if you want an automatic starting device.

SERVICE AND MAINTENANCE

Before any maintenance operation, disconnect the compressed air and electrical current from the arm and turbines/vacuum cleaners. Check the integrity of the arm structure and the wall plate at least once a year.

• Light and easy to install!

• BA3 EN version arm, vacuum cleaner included.

• Light and easy to install!

• A130L vacuum cleaner included.

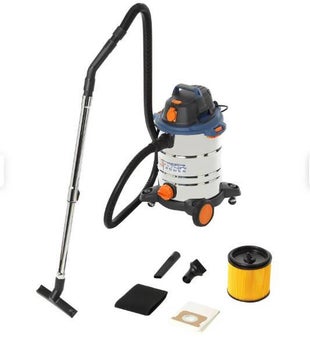

A130L Vacuum Cleaner

• Automatic electric start.

• Ideal for vacuuming water and dust.

This vacuum cleaner is sold with its accessories: 1 flexible hose (2.5 m), 1 telescopic metal tube, 1 dust collection bag, 1 floor brush, 1 round brush, 1 crevice nozzle, 1 foam filter and 1 cartridge filter. Thanks to its 2 blowing and suction functions, with its 30L tank.

Accessories included: sponge filter, flexible hose, combined brush, extension tube, triangular nozzle, bag, crevice tool.

Product specifications:

• With wheels: Yes

• Vacuum cleaner control from the handle: No

• Drain plug: Yes

• Power consumption (in W): 1500

• Depression (in kPa): From 15 to 20

• Sound level (in dB(A)): 80

• Length of hose included (in m): 2.5

• Cable length (in m): 5

• Filter type: HEPA

• Filter cleaning: Yes, manual

• Synchronized socket: Yes

• Automatic tank full stop: No

• Blowing function: Yes

• Net weight (in Kg): 8.53

• Packaged product:

  • Width (in cm): 37

  • Depth (in cm): 37

  • Height (in cm): 57

  • Weight (in kg): 8.9
